In Nigeria, electrical faults are a major cause of domestic fires, equipment damage, and electrocution. Many of these incidents happen because the right protection device wasn’t installed or a counterfeit one was used.
Whether you’re an electrician, contractor, or homeowner, understanding the difference between MCB, MCCB, RCD, RCCB, and RCBO is essential to protecting your property and loved ones.
In this comprehensive guide, we’ll break down how each device works, where to use it, and how to choose the right one for your installation.
| Device | Full Form | Function | Application | Protection Type |
| MCB | Miniature Circuit Breaker | Protects from overload & short circuit | Homes, Small Offices | Overcurrent |
| RCB/RCCB | Residual Circuit Breaker/ Residual Current Circuit Breaker | Detects current leakages and provide earth fault protection | Home, Businesses Industrial Settings | Earth Leakage |
| MCCB | Moulded Case Circuit Breaker | Higher capacity protection | Industries, factories | Overload + short circuit |
| RCBO | Residual Circuit Breaker with Overload | Combines MCB + RCCB | Residential, commercial, and industrial applications | Overload + Earth Leakage |
| ACB | Air Circuit Breaker | Protect against overload, short circuit, and earth fault conditions at high current levels. | Large industrial facilities, power plants, and substations | Overload + Short circuit + Ground Fault |
Miniature Circuit Breaker (MCB)
An MCB automatically cuts off electrical power when a circuit draws more current than it’s designed for, usually due to an overload or short circuit.
Inside an MCB, a bimetallic strip bends when heated by excessive current (for overload protection), while a magnetic trip coil reacts instantly to short-circuit surges. When tripped, the contacts open, stopping current flow.
Key Points
- Current rating: typically 6A to 125A
- Breaking capacity: up to 10kA
- Easy to reset manually after tripping
- Common trip curves: B, C, D
Where to use it:
- Lighting circuits, socket outlets, small appliance lines
- Residential and small commercial distribution boards
Note: MCBs are the first line of defense against overloads and short circuits in domestic and light commercial wiring.

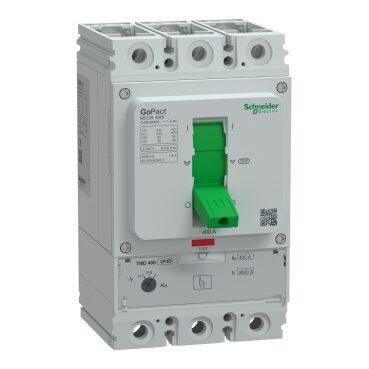

Molded Case Circuit Breaker (MCCB)
An MCCB performs the same basic function as an MCB, protection against overload and short circuit, but it’s built for higher current ratings (up to 1,600A) and adjustable trip settings.
It utilizes thermal and magnetic trip units similar to those of an MCB, but its trip thresholds can be calibrated, making it suitable for heavy-duty or industrial applications.
Key Points
- Current rating: 100A – 1,600A
- Adjustable tripping (thermal/magnetic)
- Suitable for 3-phase circuits
- Breaking capacity: up to 50kA
Where to use it:
- Industrial plants, factories, and large office complexes
- Sub-distribution panels and motor control centers
NOTE: MCCBs protect larger loads where fixed-trip MCBs can’t handle such electrical demands.

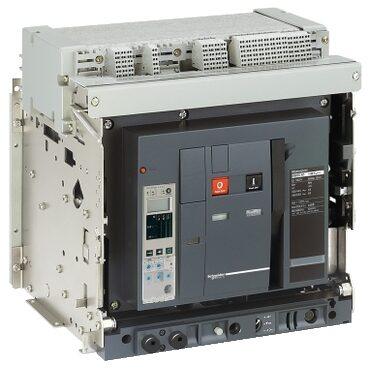

Air Circuit Breaker (ACB)
The Air Circuit Breaker (ACB) is a high-capacity breaker used in main low-voltage panels for industrial or commercial power systems. It protects against overload, short-circuit, and earth-fault conditions.
When a fault occurs, the ACB interrupts current flow in open air, using arc chutes to extinguish the arc. It can be motorized, electrically operated, and remotely monitored.
Key Points:
- Current rating: 630A – 6,300A
- Breaking capacity: up to 100kA
- Can integrate electronic trip relays and earth-fault modules
- Used as main incomer protection
Where to use it:
- Main switchboards in factories, data centers, and commercial buildings
- Between transformer secondary and MCCB feeders
NOTE: ACBs are the “big bosses” of circuit protection, handling high-current mains and providing total system protection.
Residual Current Protection Devices (RCB / RCCB)
These devices are designed to detect and disconnect circuits when leakage current flows to earth, protecting people from electric shock.
They don’t react to overload or short circuit; they trip when live and neutral currents become unequal, meaning current is leaking somewhere (possibly through a person or damp surface).
How they work:
- A built-in toroidal transformer continuously compares the current in live and neutral conductors.
- If an imbalance (residual current) occurs beyond a threshold (typically 30mA or 100mA), the breaker trips immediately.
Key Point:
- RCCB = Residual Current Circuit Breaker (modern version)
- RCB = Older term (used in dated installations)
- Trip time: within 30 milliseconds
- Offers no overcurrent protection
Where to use them:
- Bathrooms, kitchens, outdoor sockets, damp environments
- Domestic and commercial installations
Note: RCCBs stop dangerous earth-leakage currents that can cause shocks or fires.
Residual Current Breaker with Overload (RCBO)
An RCBO combines the functions of both an MCB and an RCCB in one device, protecting against overload, short circuit, and residual (earth-leakage) currents.
It has two protection modules:
- Thermal-magnetic unit → guards against overcurrent and short-circuit.
- Residual current detection → guards against earth leakage.
When any fault occurs, it trips the circuit automatically.
Key points:
- Rated current: typically 6A – 63A
- Sensitivity: 30mA, 100mA, 300mA
- Saves space (one device instead of two)
- Ideal for modern home and office setups
Where to use it:
- Individual circuits needing both overload and shock protection.
- Homes, hospitals, and critical systems.
Note: RCBO is the all-in-one safety device for modern electrical installations.
Understanding Earth Leakage Protection
Earth leakage occurs when electric current escapes from a live conductor to earth due to damaged insulation, moisture, or faulty wiring. Even a small leakage (30mA) can be fatal.
Devices that protect against this include:
- RCCB / RCD / RCB — dedicated leakage protection
- RCBO — combined leakage + overload protection
- ELCB (old) — outdated voltage-operated leakage breaker
Modern practice: Use RCCBs or RCBOs for reliable protection that meets international standards (IEC 61008, 61009).
How to Choose the Right Protection:
| Application | Recommended Device | Why |
| Lighting or socket circuits | MCB | Simple, low current protection |
| Large equipment or machinery | MCCB | Higher current & adjustable trip |
| Full residential board | Mix of MCBs + RCCBs or RCBOs | Balanced Protection |
| Industrial main switchboard | ACB | Handles high current faults |
Key selection factors:
- Rated current (In) – match with expected load
- Breaking capacity (kA) – ensure it can withstand fault current
- Poles – 1P, 2P, 3P, or 4P depending on the circuit
- Sensitivity (mA) – 30mA for human protection, 100mA+ for equipment
Common Installation Mistakes (and How to Avoid Them)
- Wrong neutral connection on RCCB – always ensure both live and neutral pass through the same device.
- Using MCB instead of RCBO in wet areas – no shock protection.
- No proper earthing – even the best RCCB can’t work without an earth connection.
- Mixing counterfeit devices – fake breakers may fail to trip during faults.
- Incorrect rating selection – undersized breakers trip too often; oversized ones fail to protect.
Always buy authentic devices from trusted distributors like Flux Energy, and follow NEMSA/SON wiring standards for safety.
Testing and Maintenance
- Press the TEST button monthly, it should trip instantly.
- If it doesn’t, replace immediately.
- Check terminals for tightness and signs of burning.
Maintenance Tips
- Clean distribution boards periodically.
- Label each circuit correctly.
- Replace old RCB/ELCB units with modern RCCBs or RCBOs.
- Regular testing ensures your breakers protect you when it matters most.
Compliance and Standards in Nigeria
Electrical safety devices must comply with both local and international standards:
- SON – Standards Organisation of Nigeria
- NEMSA – Nigerian Electricity Management Services Agency
- NERC – Nigerian Electricity Regulatory Commission
- IEC 60898 – MCBs
- IEC 60947 – MCCBs & ACBs
- IEC 61008 / 61009 – RCCBs & RCBOs
Always look for these certifications before purchase or installation.
Yes, because RCBO combines overload and leakage protection in one device, saving space and wiring.
No. RCCB only detects earth leakage; it doesn’t protect against overload or short circuit. Use both together or an RCBO instead.
At least once a month by pressing the TEST button.
It might fail to trip during a fault, leading to fire or electrocution. Always buy authentic products.
Conclusion
Choosing the right circuit protection device is essential for safety, compliance, and peace of mind.
- MCBs and MCCBs protect against overloads and short circuits.
- RCCBs and RCBOs protect against electric shocks from earth leakage.
- ACBs handle the biggest loads in industrial systems.
