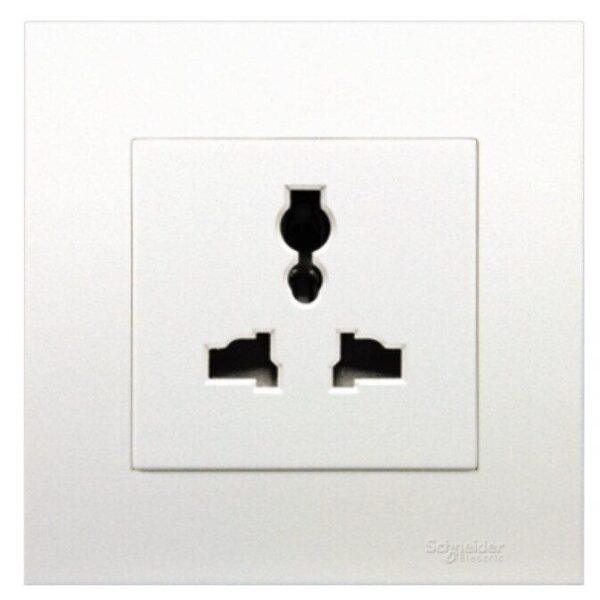

KB413S – Socket, Vivace, universal, 3pin, 13A, 250V, 1 gang, white
Original price was: NGN12,000.00.NGN10,200.00Current price is: NGN10,200.00.
26 people are viewing this right now
Description
Reviews (0)
Description
| Range | Vivace |
|---|---|
| Product or component type | Socket-outlet |
| Device short name | KB426 |
| Device application | Power supply |
| Device presentation | Complete mechanism |
| Outlet standard deviation | Universal |
| Colour tint | White |
| Type of packing | Plastic bag |
| Colour tint | Wall: white |
| Outlet poles configuration | 2P + E with shutter |
|---|---|
| Number of gangs | 1 gang |
| Material | Polycarbonate: grid plate Polycarbonate: surround Nylon: base |
| Projecting depth | 8 mm |
| Device mounting | Flush |
| Mounting support | Wall mounted |
| fixing mode | By screws |
| fixing center | 60.3 mm |
| Embedding depth | 25 mm |
| Rated current | 13 A at 250 V AC, resistive |
| Network frequency | 50/60 Hz |
| Integrated connection type | 1 socket-outlet 220…250 V AC, maximum load current: 13 A |
| Contacts material | Brass and phosphor bronze |
| Connections – terminals | Screw terminals |
| Terminal identifier | L N E |
| Tightening torque | 0.4 N.m |
| Clamping connection capacity | 2.5 mm² 4 mm² |
| Width | 86 mm |
| Height | 86 mm |
| Depth | 33 mm |
| Socket number | 1 |
| [Ue] rated operational voltage | 220…240 V |
| Network type | AC |
| Rated current | 13 A |
| Number of terminals | 3 |
| surface treatment | Untreated |
| Outlet standard | Universal |
| Surface finish | Glossy |
| Clamping connection capacity | 1 x 2.5…3 x 2.5 mm² for rigid or stranded cable(s) |
| Ambient air temperature for operation | -5…40 °C |
|---|---|
| Ambient air temperature for storage | -5…60 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0…2000 m |
| Environmental characteristic | Indoor use |
| IP degree of protection | IP20 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.6 cm |
| Package 1 Width | 3 cm |
| Package 1 Length | 8.6 cm |
| Package 1 Weight | 108.6 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 15 cm |
| Package 2 Width | 19 cm |
| Package 2 Length | 10 cm |
| Package 2 Weight | 1.156 kg |
| Unit Type of Package 3 | CAR |
| Number of Units in Package 3 | 100 |
| Package 3 Height | 21 cm |
| Package 3 Width | 31.5 cm |
| Package 3 Length | 50 cm |
| Package 3 Weight | 11108 g |
