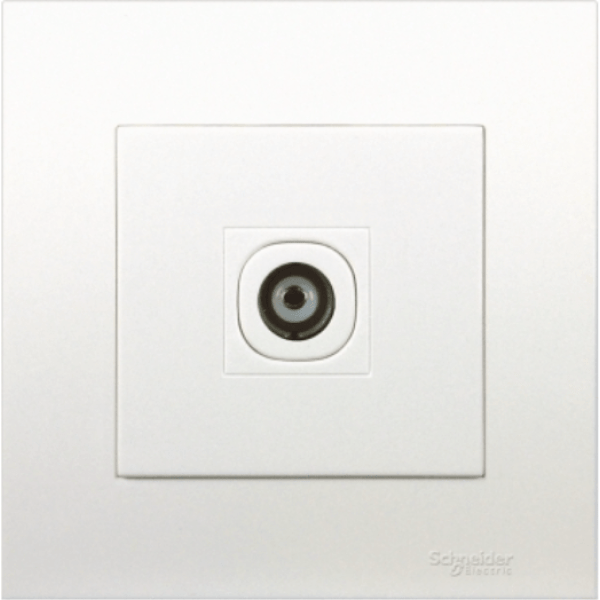

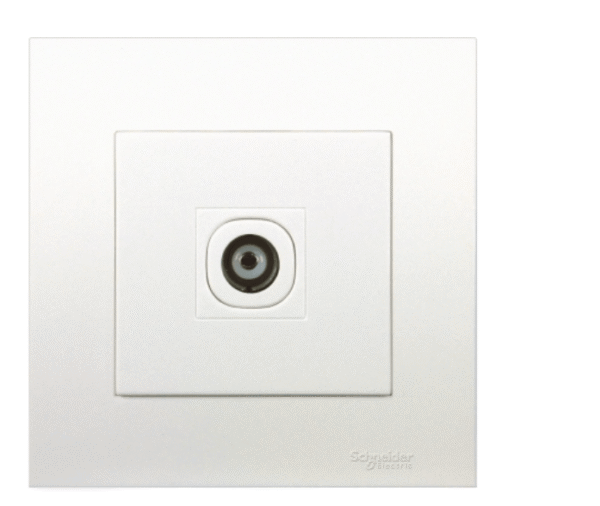

KB31TV_WE – 1 GANG TV CO-AXIAL OUTLET
Original price was: NGN5,279.14.NGN4,223.31Current price is: NGN4,223.31.
This Schneider Electric Vivace device is a TV socket 1 gang white. This device enables flush mounting. The dimensions are (W) 87mm x (H) 87mm and embedding depth of 27.3mm. The color of this device is white. Its made of polycarbonate material. The operating temperature is from -5°C up to +40°C with 0% to 95% relative humidity. The Vivace switch and socket set is a robustly constructed range built to perfectly complement the modern lifestyle. A slim, trim profile, pleasing to the eye, clean and refined Vivace switch and socket with geometrically balanced design, are available in white and aluminium silver colors.
20 people are viewing this right now
Description
Description
| Range of product | Vivace |
|---|---|
| Range | Vivace |
| Device short name | KB31 |
| Product or component type | TV socket |
| Device application | Media device support |
| Device presentation | Complete mechanism |
| Number of gangs | 1 gang |
|---|---|
| Number of outputs | 1 |
| Connector type | M-110 keystone RJ45 connector |
| Material | Polycarbonate: surround Polycarbonate: grid plate Polycarbonate: base |
| Projecting depth | 8 mm |
| Device mounting | Flush |
| Mounting support | Wall mounted |
| fixing mode | By screw M3.5 |
| fixing center | 60.3 mm |
| Colour tint | White |
| Embedding depth | 35 mm |
| Connections – terminals | Clamp terminal |
| Tightening torque | 0.4 N.m |
| Width | 87 mm |
| Height | 87 mm |
| Main colour tint | White |
| TV socket type | TV |
| Ambient air temperature for operation | -5…40 °C |
|---|---|
| Relative humidity | 0…95 % |
| Environmental characteristic | Indoor use |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.6 cm |
| Package 1 Width | 5 cm |
| Package 1 Length | 8.6 cm |
| Package 1 Weight | 86.9 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 15 cm |
| Package 2 Width | 19 cm |
| Package 2 Length | 10 cm |
| Package 2 Weight | 939 g |
| Unit Type of Package 3 | CAR |
| Number of Units in Package 3 | 100 |
| Package 3 Height | 21 cm |
| Package 3 Width | 31.5 cm |
| Package 3 Length | 50 cm |
| Package 3 Weight | 8936 g |
