-15%

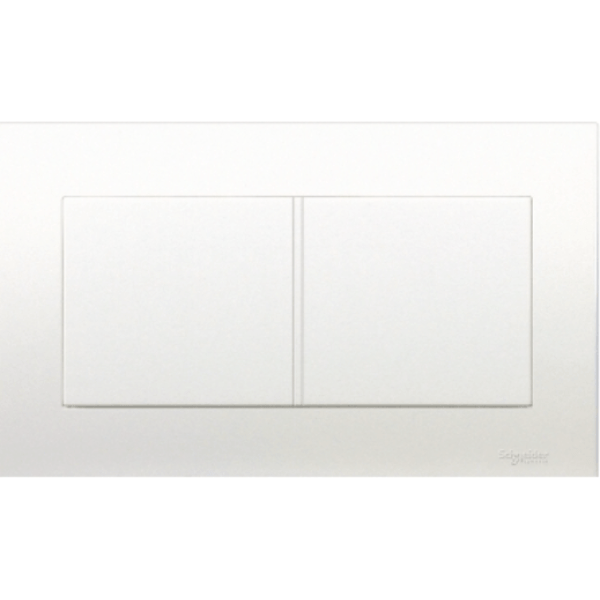

KBT30_WE – Twin Gang Blank Plate
Original price was: NGN4,681.95.NGN3,979.66Current price is: NGN3,979.66.
“Vivace Blank plate by Schneider electric.” “The fixing mode of the device is with screws.” “The device is with 2 gang.” “This device is designed to be flush mounted.” “The dimensions of the product is (W) 146mm x (H) 86mmx (D) 8mm. The Projecting depth is 8mm.” “It is made of Polycarbonate (PC). The color of the product is white with glossy surface finish.” “The Ambient air temperature for operation is from -5°C up to +40°C and the relative humidity is from 0% to 95%. It reaches an IP20 degree of protection.” “The Vivace switch and socket set is a robustly constructed range built to perfectly complement the modern lifestyle.” “A slim, trim profile, pleasing to the eye, clean and refined Vivace switch and socket with geometrically balanced design, are available in white and aluminium silver colors.” “This device is compliant with the BS 5733 standard.”
28 people are viewing this right now
Description
Description
| Range | Vivace |
|---|---|
| Product or component type | Blank plate |
| Accessory / separate part category | Fixing accessory |
| Device short name | KBT30 |
| Device application | Basic protection |
| Colour tint | Wall: white |
| Range compatibility | Vivace KBT cover frame |
|---|---|
| Number of gangs | 2 gangs |
| Colour tint | White |
| Material | Polycarbonate: surround Polycarbonate: grid plate |
| Projecting depth | 8 mm |
| Device mounting | Flush |
| Width | 146 mm |
| Height | 86 mm |
| Depth | 8 mm |
| fixing mode | By 2 screws |
| IP degree of protection | IP20 |
| surface treatment | Untreated |
| Surface finish | Glossy |
| Product destination | Flush mounted box |
| Standards | BS 5733 |
|---|---|
| Ambient air temperature for operation | -5…40 °C |
| Ambient air temperature for storage | -5…60 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0…2000 m |
| Environmental characteristic | Indoor use |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.1 cm |
| Package 1 Width | 8.6 cm |
| Package 1 Length | 25.3 cm |
| Package 1 Weight | 103 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 15 cm |
| Package 2 Width | 38 cm |
| Package 2 Length | 10 cm |
| Package 2 Weight | 1.195 kg |
| Unit Type of Package 3 | CAR |
| Number of Units in Package 3 | 100 |
| Package 3 Height | 21 cm |
| Package 3 Width | 31.5 cm |
| Package 3 Length | 50 cm |
| Package 3 Weight | 10550 g |
