-20%

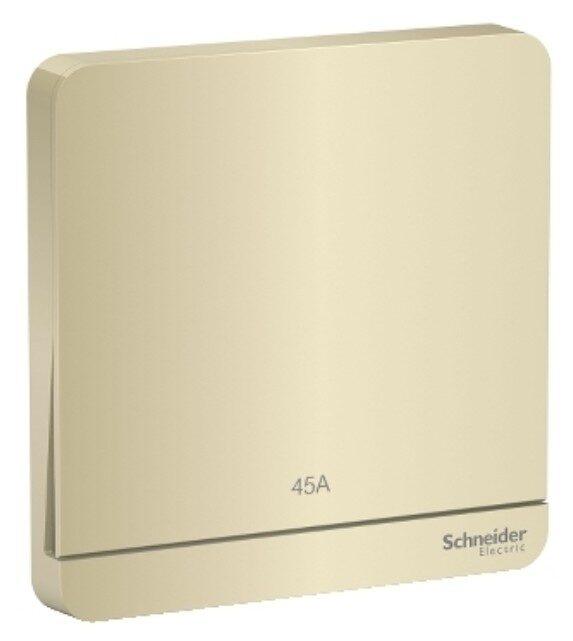

E8331D45N_WG – AvatarOn, switch, 45A, 250V, 2P, LED, Wine gold
Original price was: NGN40,704.30.NGN32,563.44Current price is: NGN32,563.44.
Schneider Electric AvatarOn switch E8331D45N_WG is a complete product in color wine gold with 1 rocker. This is a 2-pole 1-way switch with LED indicator. And its rated current is 45A. It is 86 mm in width, 86 mm in height, 32 mm in depth, Its matching mounting box can be recessed into the surface of the wall with flush type. The IP rating of this device is IP20. Its connection terminals are brass terminal. Being made of polycarbonate, polycarbonate + GF 20 % material, this switch is quite reliable and resistant. Being environmentally friendly, this switch is a green premium product too. And it is mercury free AvatarOn offers six fashionable, classic appearances, letting your home’s details change, just like the changes in your colorful life. Unique, patented technology and exquisite manufacturing ensure comfortable operation, and the easy-mount design allows you to change the faceplates as quickly and easily as you wish.
29 people are viewing this right now
Description
Reviews (0)
Description
| Product or component type | Switch |
|---|---|
| Device application | Control |
| load type | Incandescent lamp Small motor load Fluorescent lamps Serial boost load (SBL) Resistive |
| Colour tint | Wine gold |
| Colour tint | Wine gold |
| Device presentation | Complete product |
|---|---|
| Rated current | 45 A at 250 V AC 50/60 Hz |
| Switch function | 2-pole 1-way |
| Number of gangs | 1 gang |
| Number of rocker | 1 |
| Clamping connection capacity | 4 x 4 mm² for stranded cable(s) 1 x 10 mm² for stranded cable(s) 1 x 16 mm² for stranded cable(s) |
| Connections – terminals | Brass terminal |
| Local signalling | On: LED indicator, LED (amber) |
| Material | Polycarbonate: grid plate Polycarbonate: base Polycarbonate: dolly Polycarbonate: frame Polycarbonate + GF 20 %: actuator |
| Device mounting | Flush |
| Width | 86 mm |
| Height | 86 mm |
| Depth | 32 mm |
| IP degree of protection | IP20 |
|---|---|
| Maximum ambient air temperature for operation | 45 °C |
| Operating altitude | 2000 m |
| Relative humidity | 0…95 % |
| Standards | BS EN 60669-1 SS 227-1 IEC 60669-1 MS IEC 60669-1 |
| Environmental characteristic | UV resistant |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.2 cm |
| Package 1 Width | 8.6 cm |
| Package 1 Length | 8.6 cm |
| Package 1 Weight | 162 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 9.5 cm |
| Package 2 Width | 9 cm |
| Package 2 Length | 19.5 cm |
| Package 2 Weight | 1.297 kg |
| Unit Type of Package 3 | PAL |
| Number of Units in Package 3 | 1728 |
| Package 3 Height | 110 cm |
| Package 3 Width | 80 cm |
| Package 3 Length | 120 cm |
| Package 3 Weight | 291.12 kg |
